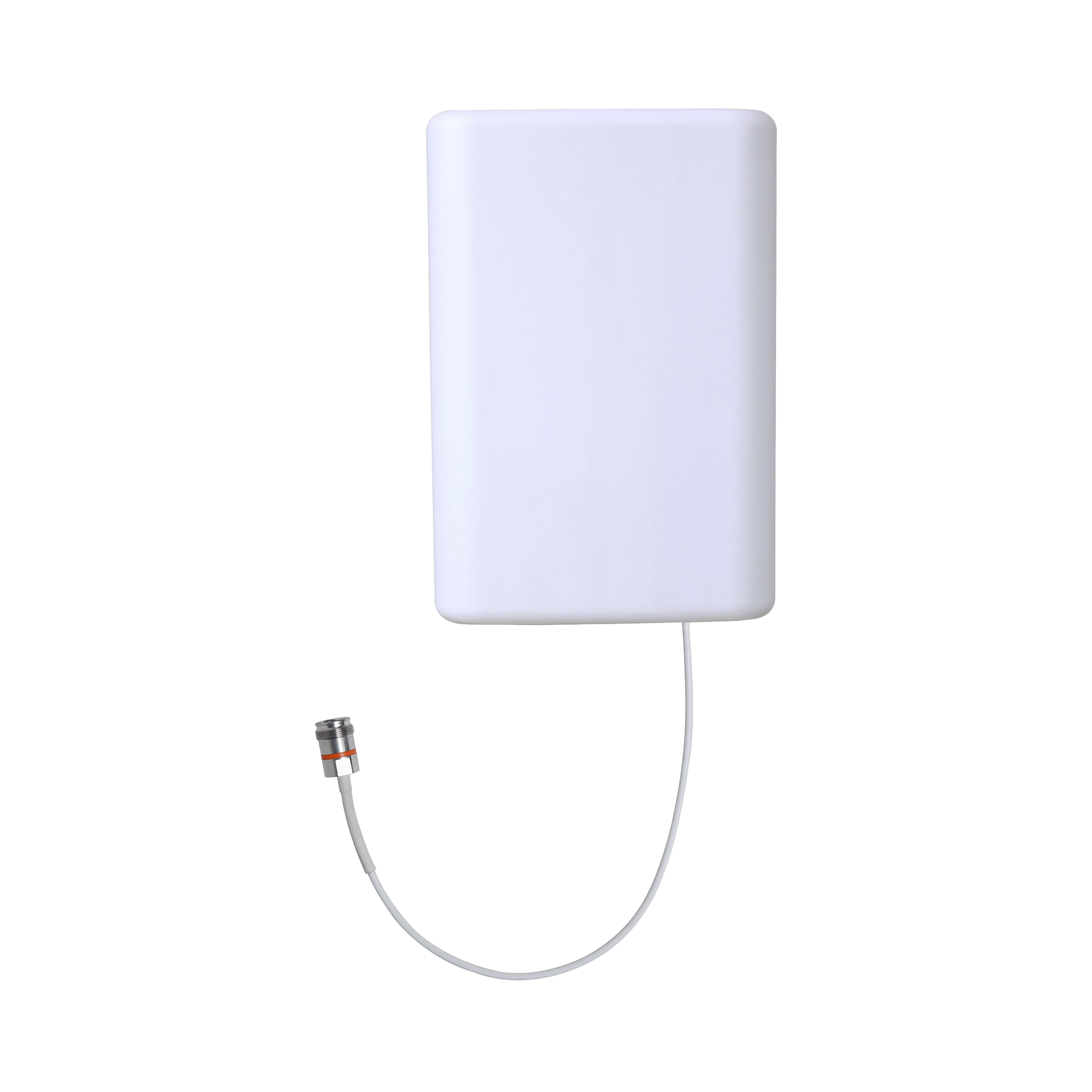

CMAX-D-43-V53 Antena Direccional de bajo PIM para interior con conector 4.3-10 en 698-960 MHz y 1710-2700 MHz
CMAX-D-43-V53
ANDREW
$ 4,452.00
$ 4,452.00
El precio incluye IVA
Descripción del producto
CMAX-D-43-V53 Antena Direccional de bajo PIM para interior con conector 4.3-10 en 698-960 MHz y 1710-2700 MHz
| Electrical Specifications |
| Frequency Band, MHz | 698–800 | 800–960 | 1695–1880 | 1850–1990 | 1920–2180 | 2200–2700 | 2300–2360 |
|---|---|---|---|---|---|---|---|
| Gain, dBi | 5.5 | 6.2 | 7.3 | 7.3 | 7.4 | 7.6 | 7.9 |
| Beamwidth, Horizontal, degrees | 98 | 90 | 73 | 76 | 76 | 76 | 73 |
| Beamwidth, Vertical, degrees | 76.0 | 60.0 | 60.0 | 60.0 | 60.0 | 57.0 | 58.0 |
| VSWR | Return Loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153< |
